Tuning Tools + Dealer Packages
CMD OBD+BDM Flash Package
The CMD OBD Flash system is one of (if not the best) flash tools on the world market today. We have owned and tested almost every tool available to the tuning market and found this to be the most reliable tool of them all
Features:- BDM Motorola Mpc
- Bosch MED17 / EDC17 TRICORE
- C16x / ST10 Debug
- CAN V2.0B 1Mb/s
- K line ISO / KWP
- J1850 PWM
- Mitsbishi Lancer EVO 5->9
- Industrial Vehicles 24V
- Automatic resistor switch-K Line 470 ohm pull-up resistor for VAG EDC16
- Protection dongle is now inside the black box
- Old cars protocols ( i.e. EDC15, ME7, etc ) are now included
- Master/Slave option
- Recovery mode
- Automatic checksums
ALL THIS inside one box
Right Click on link and select "save target as.." to download complete car list

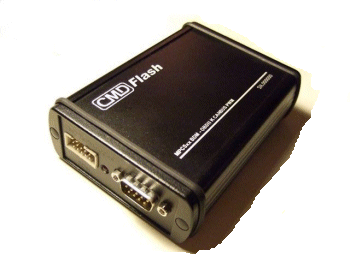

CMDFlash Slave OBD + BDM Package
The CMDFlash tool is a reader/programmer BDM,EOBD
K-LINE,EOBD CAN-BUS,EOBD PWM for all the new generation ECUs.
With BDM you need to unplug the ECU from the vehicle, open and connect it
to our tool using a connector available on every EDC16,Marelli,Siemens and
Delphi ECU.
The Software will allow you to read/write the Eprom (29bl802 / M58), the
internal firmware and the serial e2prom containing the car's codes.
Checksum correction algoritm is available for all the ECU families, this
means you don't have to care about checksums calculations .
With our tool it is possible to read all of the ECU's eprom thus allowing
the repair of ECU's that have been locked out and will no longer
communicate with your OBD tool
All the ECU data can be stored in a single file with additional info like
brand, model, make, chassis number, data, note, customer .....
with search facilities and information directly integrated in microsoft
windows explorer
Price for complete slave package is €3200 + VAT
Includes
CMD Flash OBD + BDM
BDM Positioning Frame
BDM Probes
3 Free Tuning files
1 years updates and support
Master CMDFlash + BDM is €5700 euro plus vat
BDM Framework = €380
Probes Kit = €150
All our tuning files are either developed in house our supplied from some of the best tuners in Germany, UK, Greece, Luxemburg and Ireland guaranteeing you a well balanced increase in horsepower and torque not only on the high end under full load, but also in the low and mid ranges, without having negative effect on the exhaust emissions.
We guarantee a faultless and failure free tuning software, that doesn't interfere with any maintenance, service and diagnostic related features of the electronic control system onboard a particular vehicle.
Additional addons can be purchased for commercial vehicles etc
For more information on the hardware please visit CMD's website
